CBI

with Ethernet

The ADEL Systsm line of DC-UPS with Ethernet interface and integrated webserver consisting of two power sizes: 60W 12, 24 and 48Vdc and 600W 24 and 48Vdc. The CBI60W and CBI600W series with built-in Ethernet SNMP, Modbus TCP/IP and HTTPS protocols can be connected to gateways and switches, providing easy access to battery status, DC-UPS functions and all application data.

The new line of DC-UPS with Ethernet interface consists of following models: CBI6012A (12V 5A), CBI6024A (24V 2.5A) and CBI6048A (48V 1.25A); CBI60024A (24V 25A) and CBI60048A (48V 12.5A).

Using switching technology with microcontrollers and optimise battery charging and discharging time without deep discharge, switching from battery to charger without any interruption, automatic fuse-free protection against backup polarity, short circuit and overload, and overvoltage.

The CBI60W and CBI600W series have different charging profiles for lead-acid, AGM, GEL, NiCd, NiMh, Li-Ion and LiFePO4 battery technologies.

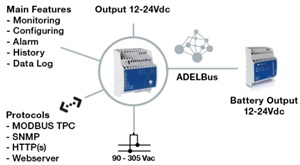

ETHERNET integration for remote monitoring

Ethernet SNMP, Modbus TCP/IP, and HTTPS interfaces enable users to access internal DC-UPS parameters remotely through IoT equipment. A number of important operational parameters are sent in real time.

The interface allows you to:

• Monitor parameters;
• Configure parameters;
• Record data and events;
• Receive alarm notifications For example, the operator can monitor the following parameters:
• AC input voltage;
• DC output load voltage, current, power and output status;
• Voltage, current and internal resistance of the battery
• Receive alarms on network, device and battery faults.

Based on the data received, the user can improve system efficiency and better optimize system power consumption.
