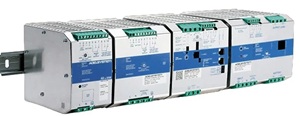

The Historical Line of Adelsystem DC UPS

 ►Visit TVR Online Shop for DC UPS
Visit TVR Online Shop These are switching technology devices with microcontroller, which best optimizes the charging and discharging time of the accumulator, avoiding deep discharge of the batteries. The switching time on the load is zero; switching between the input and the battery is immediate. All DC-UPSs are protected against reverse polarity, short circuit, overload and the output overvoltage.



Main Features

  • Output voltage 12, 24, 48Vdc, even in the absence of power supply
  • Output current 2.5A ÷ 25A, even in the absence of AC mains
  • Fault signaling via relay contact, blink code, and Modbus RTU and TCP/IP protocols
  • Automated power sharing of available power between load and battery charging
  • Output power: 60W, 120W, 240W, 250W, 280W, 500W, 600W
  • Power boost, up to 3 times the rated current available. Ability to handle high current surges
  • DC-UPS and battery self-diagnosis: high voltage; sulfated battery; reverse connection; possible shorted element; short circuit protection
  • "Main or back-up" and "battery failure/discharge" signaling relays with galvanically isolated output contacts
  • Accessories: battery temperature sensor, external display, PC and Modbus connection cables
  • Fast battery recharging for cyclic applications
  • Ultracompact design
  • Temperature operation range -40 ÷ 70°C

All in one 12Vdc
NAME INPUT OUTPUT DATASHEET MANUALS
CBI123A 110-240-277Vac  3A file-pdf-solid (1) file-pdf-solid (1)
CBI126A 110-240-277Vac  6A file-pdf-solid (1) file-pdf-solid (1)
CBI1210A 110-240-277Vac  10A file-pdf-solid (1) file-pdf-solid (1)
CBI1235A 110-240-277Vac  35A file-pdf-solid (1) file-pdf-solid (1)

All in one 24Vdc
NAME INPUT OUTPUT DATASHEET MANUALS
CBI243A 110-240-277Vac  3A file-pdf-solid (1) file-pdf-solid (1)
CBI245A 110-240-277Vac  5A file-pdf-solid (1) file-pdf-solid (1)
CBI2410A 110-240-277Vac  10A file-pdf-solid (1) file-pdf-solid (1)
CBI2420A 110-240-277Vac  25A file-pdf-solid (1) file-pdf-solid (1)

All in one 48Vdc
NAME INPUT OUTPUT DATASHEET MANUALS
CBI485A 110-240-277Vac  5A file-pdf-solid (1) file-pdf-solid (1)
CBI4810A 110-240-277Vac  12.5A file-pdf-solid (1) file-pdf-solid (1)

All in one 12-24Vdc
NAME INPUT OUTPUT DATASHEET MANUALS
CBI2801224A 110-240-277Vac 280W file-pdf-solid (1) file-pdf-solid (1)
CBI2501224A 100-240-277Vac
140-340 Vdc		 250W file-pdf-solid (1) file-pdf-solid (1)

Temperature sensor
NAME DATASHEET MANUALS
RJTEMP111 & RJTEMP113     file-pdf-solid (1)
RJTEMP451 & RJTEMP453                  file-pdf-solid (1)

Display Module
NAME Description DATASHEET MANUALS
DPY351 For use with the CBI280 series of DC UPS. Aux 9-72VDC   file-pdf-solid (1) file-pdf-solid (1)
  DPY353   Door-mounted LED display for use with the Adel CBI range. Aux 9-72 V DC  file-pdf-solid (1)
