Type A COMPACT EARTH LEAKAGE RELAYS

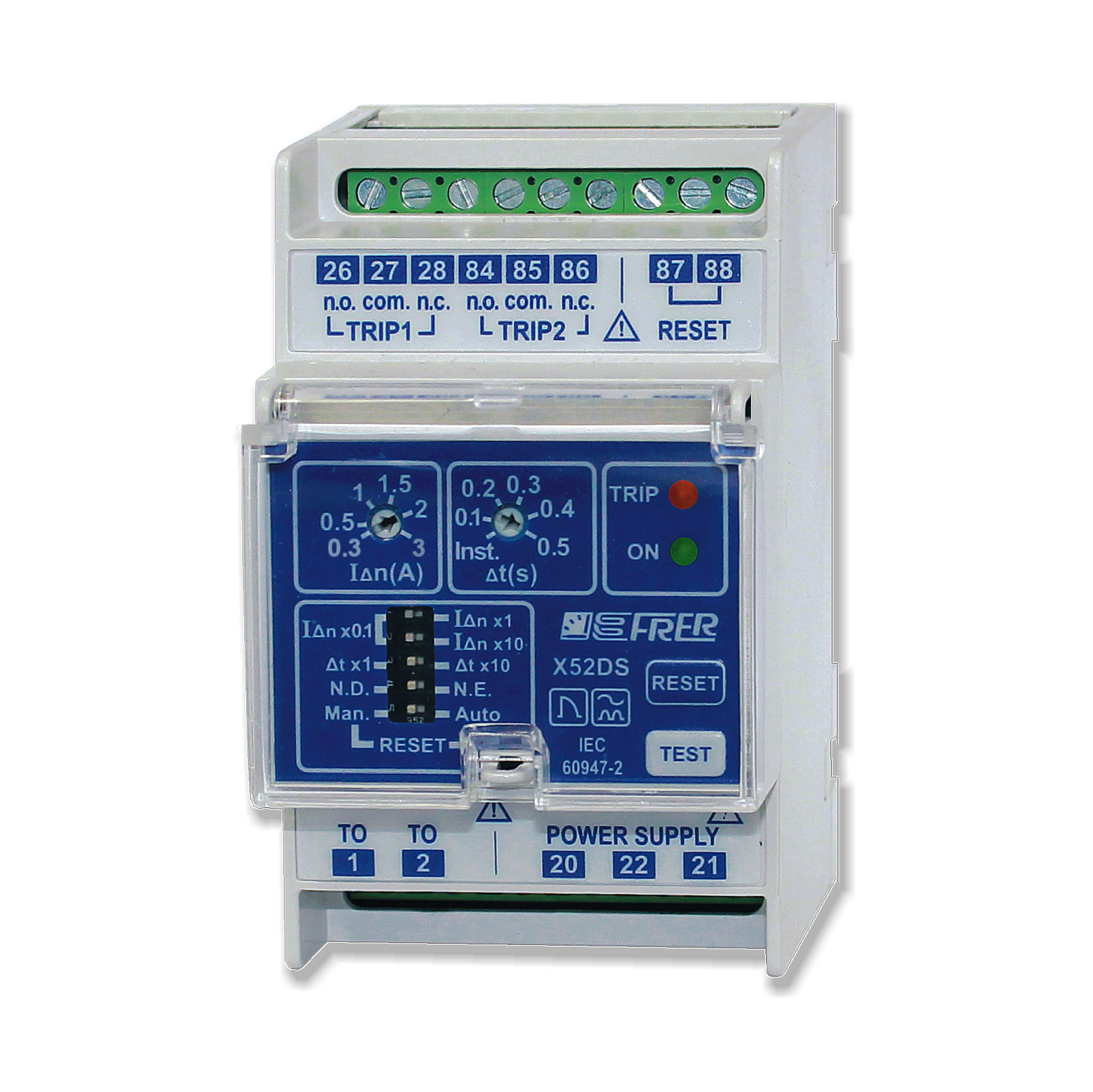

MODEL X52DS, DIN MOUNTING 3 MOD. DIN
MODEL X52DS, DIN MOUNTING 3 MOD. DIN
earth Leakage Size: 53mm
earth Leakage Current Setting Range: 30mA ÷ 30A in 3 ranges
earth Leakage With external reset function
earth Leakage Aux. Supply: 115-230V AC
earth Leakage DIN Rail Mounted
earth Leakage Other auxiliaries available on request


Datasheet/Online ShopManual

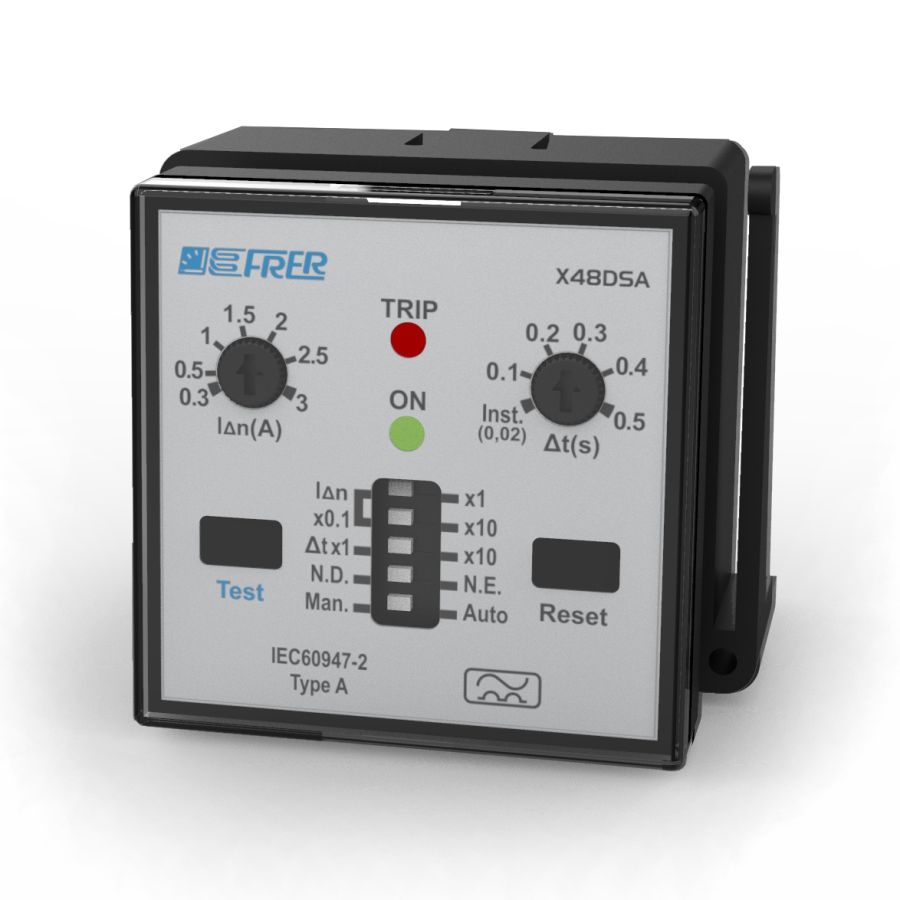

MODEL X48DSA, ULTRA-COMPACT
MODEL X48DSA, ULTRA-COMPACT
earth Leakage Size: 48 x 48 x 59 mm
earth Leakage Current Setting Range: 0,030 ÷ 30A or 30-300A
earth Leakage Leakage level LED flash indication
earth Leakage Aux. Supply: 115-230V AC
earth Leakage Panel Mounted
earth Leakage Other auxiliaries available on request


Datasheet/Online Shop Manual























MODEL X72DSX,  DIN72 PANEL MOUNTED
MODEL X72DSX, DIN72 PANEL MOUNTED
earth Leakage Size: 72 x 72 mm
earth Leakage Current Setting Range: 30mA ÷ 30A in 3 ranges
earth Leakage Aux. Supply: 115-230V AC
earth Leakage Panel Mounted
earth Leakage Other auxiliaries available on request


Datasheet/Online ShopManual

MODEL X96DS,  DIN96 PANEL MOUNTED
MODEL X96DS, DIN96 PANEL MOUNTED
earth Leakage Size: 96 x 96 mm
earth Leakage Current Setting Range: 30mA ÷ 30A in 3 ranges
earth Leakage Aux. Supply: 115-230V AC
earth Leakage Panel Mounted
earth Leakage Other auxiliaries available on request


Datasheet/Online Shop Manual
